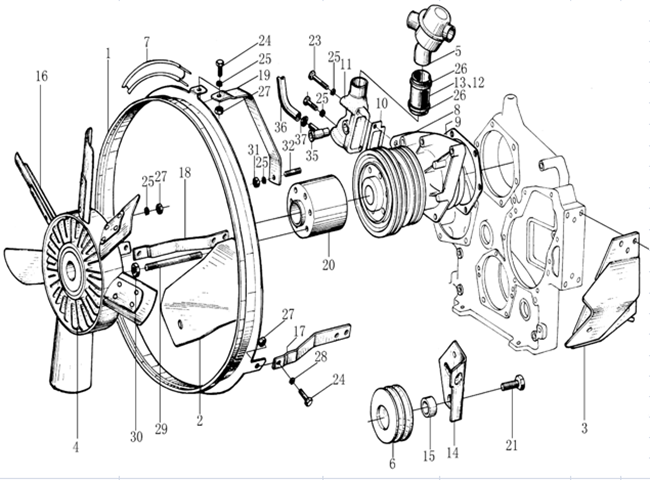

| no | no | partie | quantité |
| 1 | VG1500060027 | anneau | 1 |
| VG9100590006 | support L. | 1 | |
| VG9100590009 | support R. | 1 | |
| 4 | VG2600060446 | Visw moyeu | 1 |
| VG1500060116 | thermostat 71℃ | 1 | |
| 5/A | VG1500060117 | thermostat 71℃ | 1 |
| VG1560060069 | Roll C | 1 | |
| 6/A | VG2600060313 | Roll C | |
| VG1560060016 | Siphon | 1 | |
| VG1500060050 | d’eau pompe C | 1 | |
| 8/A | VG1500060051 | eau pompe C | 1 |
| VG14060008 | commune | 1 | |
| VG14060024 | commune | 1 | |
| 11 | VG1560060022A | gicleur | 1 |
| 13 | VG61000060276 | tuyau | 1 |
| VG2600060446 | ￠640 anneau fan | 1 | |
| VG1560060010 | soutien | 1 | |
| 18 | VG1560060011 | soutien | 1 |
| VG1560060012 | soutenir | 1 | |
| 20 | VG1500060240 | bride | 1 |
| 21 | 190011400001 | vis | 1 |
| 23 | 190013800467 | vis | 1 |
| 24 | 190003802424 | vis | 8 |
| 25 | 190003932023 | rondelle grower | 12 |
| 26 | 190003989308 | tuyau Pince | 4 |
| 27 | 190003888451 | Nut | 10 |
| 28 | 190003937283 | rondelle | 3 |
| 28 | 190003930261 | rondelle | 9 |
| 29 | Stud | 6 | |
| 30 | 190003888452 | Écrou | 6 |
| 190003871252 | Écrou | 1 | |
| Stud | 1 | ||
| VG1560060001 | connecteur | 1 | |
| 35/A | VG1560060004 | connecteur | 1 |
| VG2600130027 | tuyau | 1 | |
| tuyau Pince | 2 |
